Case study · Synaptic
And where private documents stay private — even from the AI.
A self-directed personal project, designed, built and deployed solo. Not client work.
The problem
01
The assistant tells you something and points at a vague source. There is no way to confirm it did not simply make it up.
02
When a document is shared with some people and not others, the AI search usually ignores who is asking — so content reaches readers who were never given access.
Synaptic was built to fix specifically those two things.
What I built

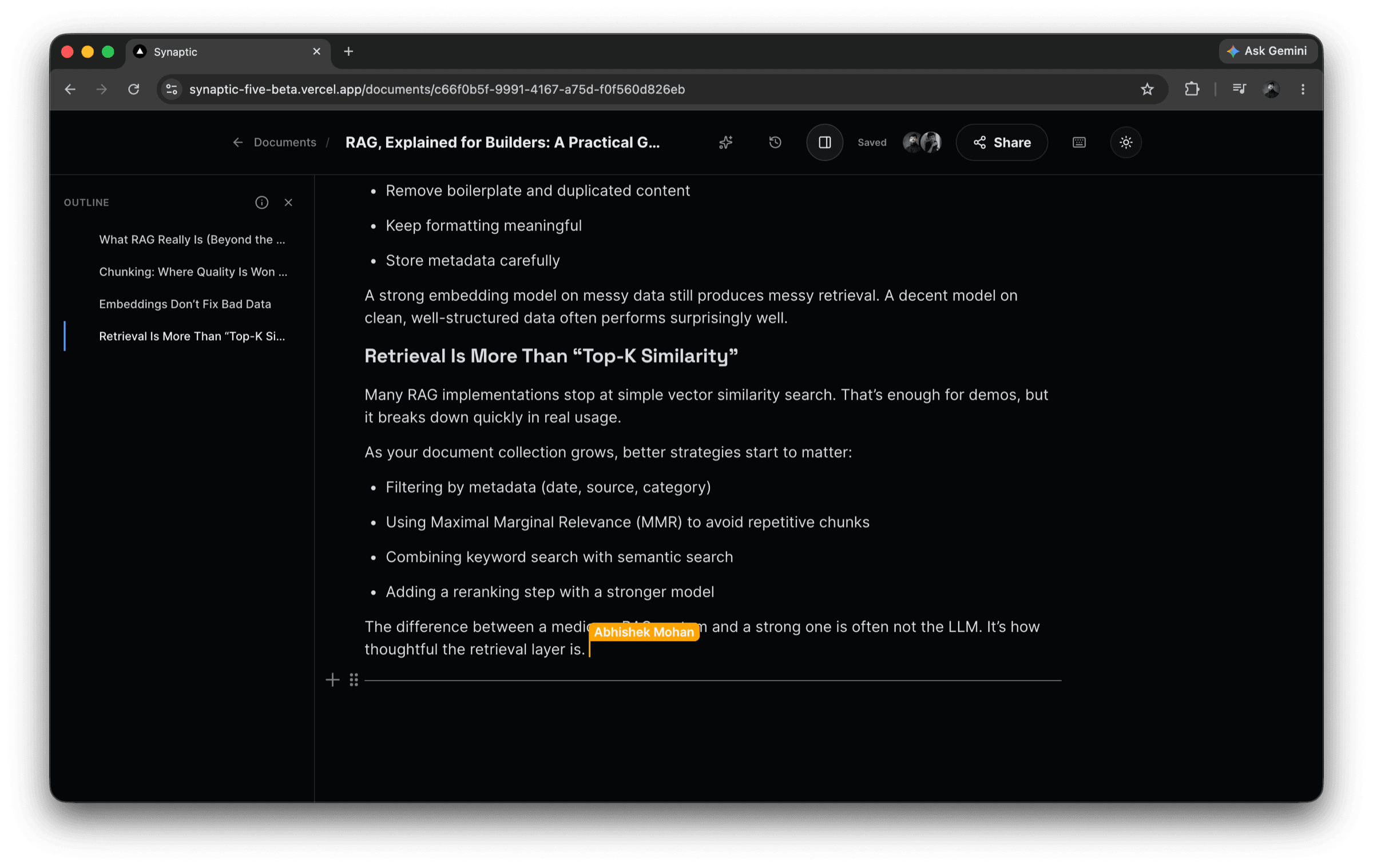

Several people in one document at once, with live cursors and no one overwriting anyone else's work.

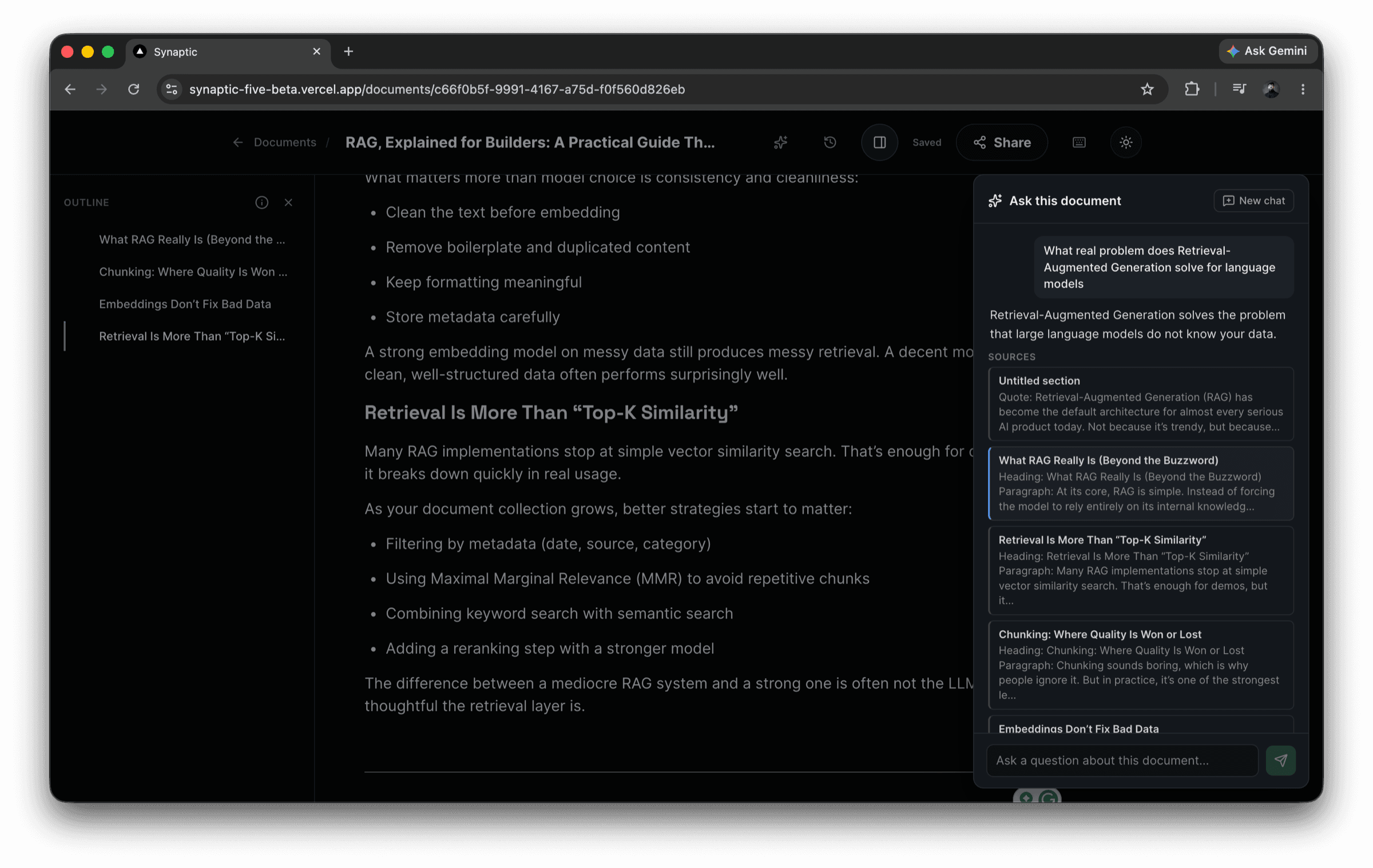

Ask a question about the document and the answer comes with the exact passage it used — click it to jump straight there.

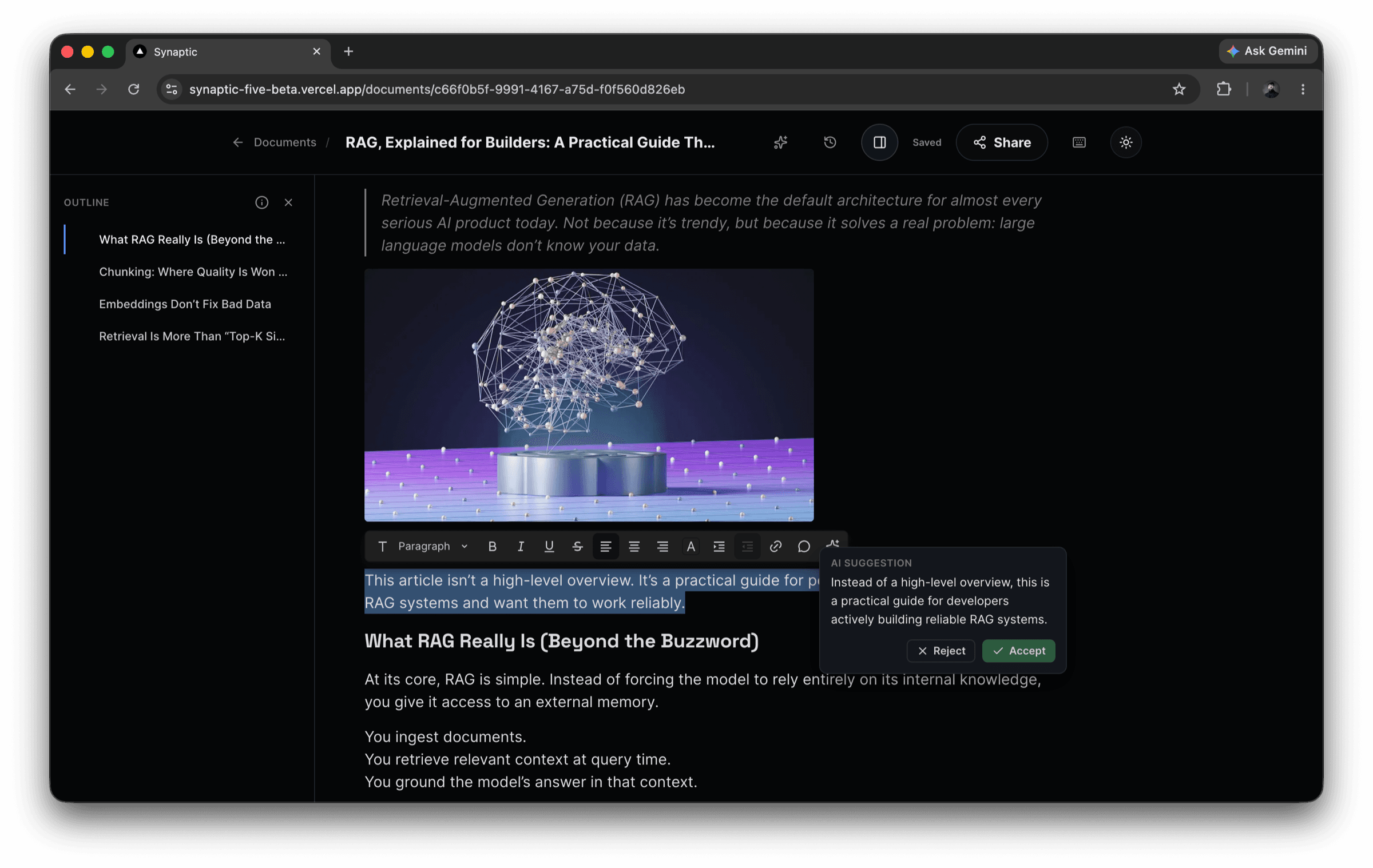

Select any text and hand it to the assistant for a rewrite, an expansion or a tightened version.

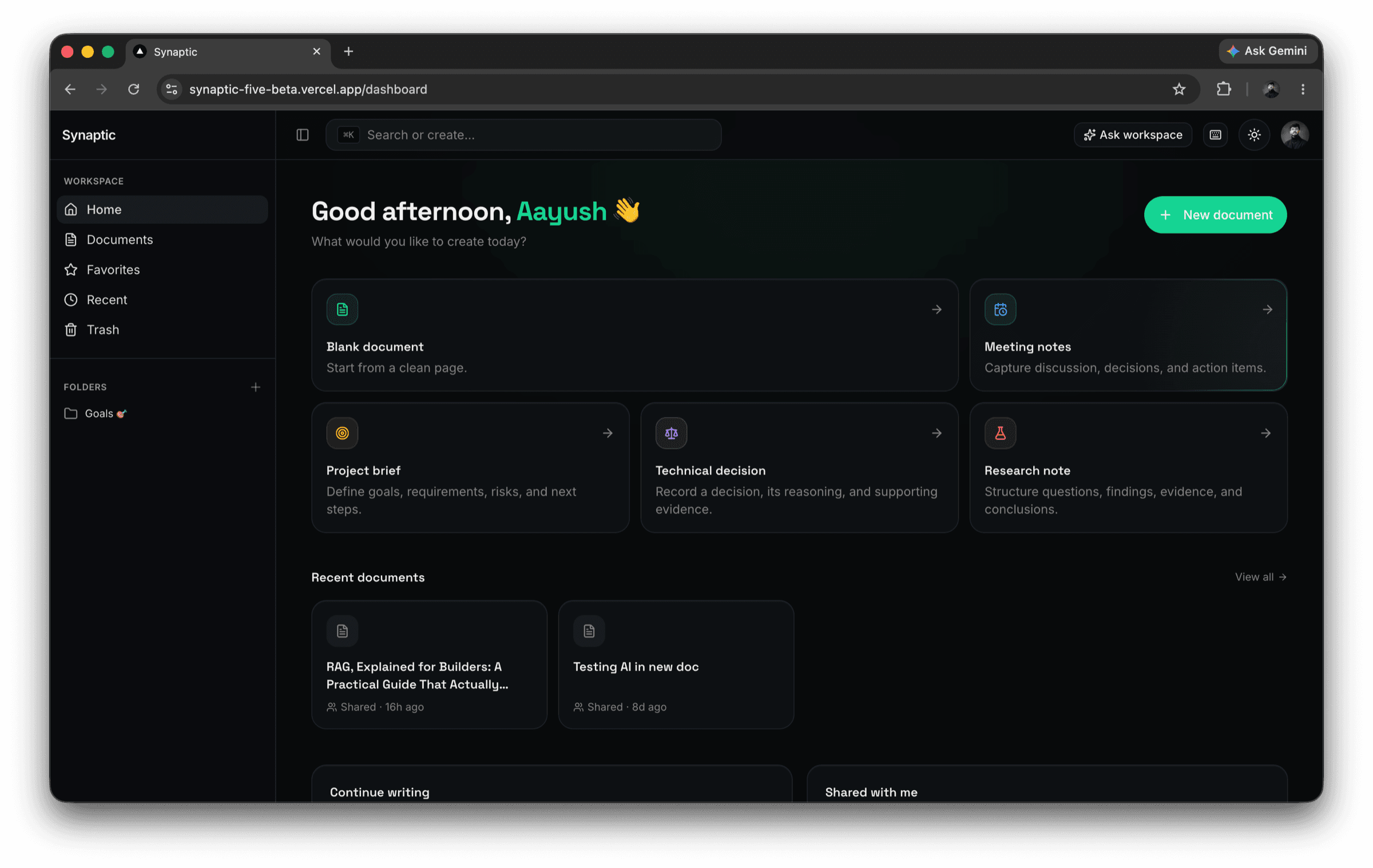

Sign-in, user accounts, a dashboard, folders and favourites.
Invite people at different levels of access, and revoke that access instantly — mid-session, not next login.
Browse every earlier state of a document and restore any of them.
Search across what the documents actually say, not only their titles.
Designed, built and deployed to production, solo.
How it works
You type.
Everyone in the document sees it instantly.
The document is saved and indexed in the background.
You ask a question.
The system finds the relevant passages you personally have permission to see.
The assistant answers using only those passages.
The answer links back to the live passage in the document.
For engineers
Everything below is written for engineers. If you came to judge the product, you already have what you need — this is where the decisions, the rejected approaches and the known edges live.
Hardest problems
01
Why it’s hard
The Liveblocks/Yjs session and the Postgres-backed autosave are two sources of truth that must agree. A late-returning save can clobber newer content, and a reload can race the room hydration.
Resolution
Saves are serialized through a coalescing latch, so an in-flight save cannot be overwritten by a stale one. A seeding guard prevents an empty document from being silently re-seeded over live state on reload.
02
Why it’s hard
A citation is worthless if it lands near the evidence instead of on it. The easy and wrong answer is pointing chunk metadata at the section's heading block — cheap to store, and consistently off-target.
Resolution
The actual first evidence block is tracked separately and carried through chunk merging and splitting, with an ordered fallback chain for targets that no longer exist after an edit.
03
Why it’s hard
Nearly every RAG tutorial reaches for the service-role key on the indexing and query path — faster, and permission-blind. That is exactly how a retrieval layer leaks documents its caller was never granted.
Resolution
RAG indexing and querying go through the same Postgres Row Level Security path as every other read. There is no service-role key anywhere in the application, including the AI code paths.
04
Why it’s hard
Gating access at page load leaves a revoked collaborator inside an open realtime connection, still receiving updates.
Resolution
Revoking a collaborator forces their open realtime connection to re-authenticate, so the downgrade lands in their current session rather than only on the next page load.
05
Why it’s hard
Persistence, RAG re-indexing and version snapshots all hang off the same save. Fire them naively and they race, duplicate work, or index a document state that was never persisted.
Resolution
The three are coordinated off a single save event and ordered so re-indexing and snapshotting run against persisted state rather than racing it or duplicating work.
Found and fixed
Why it’s hard
The RLS design uses SECURITY DEFINER helper functions to avoid circular policy evaluation. Postgres and PostgREST expose every function in the public schema as a callable RPC, so those helpers were callable by any authenticated user as a role and ownership oracle.
Resolution
The helpers were moved out of the exposed schema.
20260910000000_restrict_permission_helper_rpc_access.sqlArchitecture
Writing and retrieval are separate paths. They share persisted, permission-enforced data — not a single continuous pipeline.
Write path · document changes
Client editor
the browser, where a keystroke starts
Collaborative state
Liveblocks + Yjs over BlockNote
Debounced, coalesced autosave
also runs in the browser
browser writes directly — RLS is the only gate
on save success
Next.js API route
/api/rag/index
RAG chunking + embedding
write path only
chunks written back through RLS
Supabase / Postgres
Row Level Security on every querydocuments + versions
persisted document state and history
document_chunks
pgvector — an extension in this same database
This is the only place the write path and the read path meet. There is deliberately no server between the autosave and the database — the browser holds a Supabase client carrying the Clerk token and writes straight to Postgres. RLS is what makes that safe.
permission-scoped retrieval reads document_chunks
Read path · triggered by a question
User asks a question
in the assistant panel
Next.js API route
the browser stops here
Rate-limit check
Postgres-backed
Permission-scoped retrieval
RLS-enforced similarity search
Gemini generation
grounded in the retrieved chunks only
Cited answer
each claim carries its evidence passage
Live-block navigation
by stable block ID
Jump to the live block — the citation navigates back into the client editor at the top of the write path, and the loop closes.
Identity · separate from data flow
Clerk identity
issues the access token
Supabase / Postgres
identity → RLS evaluates this
Liveblocks auth endpoint
authorizes the realtime room
Notes · Supabase and version history
No role — including the document owner — holds UPDATE or DELETE on the versions table. History cannot be rewritten by the application, only added to.
Block-level diffs use BlockNote's stable block IDs, so restoring a version does not scramble the citation targets pointing into that document.
Judgment and known limits
This is deliberate practice, not a defect list — documenting a system's limits is part of delivering it, and the same discipline carries into client work.
It is a Postgres-backed atomic counter, so it holds across multiple server instances rather than living in per-process memory. It fails open: availability chosen over strictness, at the cost of a narrow unenforced window.
Restore does not yet guard against another collaborator editing the same document at that instant. Safe for the common single-editor case, not for that race.
A node:test suite covers RAG chunking, citation and search logic. There is no E2E or component suite yet.
Sentry runs with a single error-capture call site and a closed error-context type with no free-form data field. SDK data collection is disabled across every category, including AI prompt and response capture.
None of this is a claim of perfect security.
Stack
”
A complete product, shipped solo: product thinking, real-time systems, an AI feature that is verifiable rather than decorative, database-level security, and production deployment.
